laser cutter

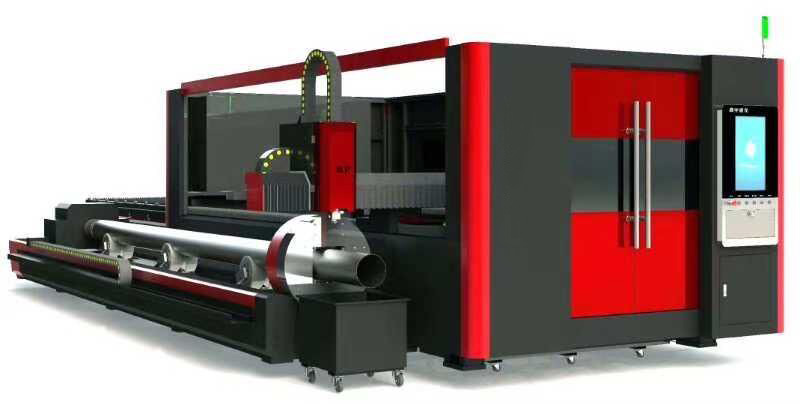

AL-FC3015 Fiber Metal Laser Cutting Machine
Equipment advantage:
1.High quality of light beam:Focus spot smaller, more efficient, better processing quality
2.High quality cutting speed: 2 times as fast as same power CO2 laser cutting machine
3.High quality stability: The machine adopts the world's top imported fiber lasers,Stable equipment performance,the key components of the service life up to 100,000 hours
4.High quality electro-optical conversion efficiency: 3 times more efficient than CO2 laser cutting machine electro-optical conversion rate, Energy saving and environmental protection
5.Low cost of use: The entire machine power consumption is only 20-30% of the same CO2 laser cutting machine.
6.Low maintenance costs: No laser working gas; optical fiber transmission,no need to reflect the lens,can save a lot of maintenance costs
7.Easy operation and maintenance: Fiber transmission, no need to adjust the optical path
8.Flexible light guide effect: Small size, compact structure, easy to flexible processing requirements
Applicable materials:
The machine is mainly used for fast cutting carbon steel, silicon steel, stainless steel, Aluminum Alloy, titanium alloy, galvanized sheet, pickling plate, galvanized sheet, copper and other metal materials .
Applicable fields:
The machine is widely applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobile, machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing and other Manufacturing and processing industry.
Technical Parameters:
Type | AL-FC1325-1000W | AL-FC1325-2000W |
output power | 1000W | 2000W |
Processing format | 1300*2500 mm | 1300*2500 mm |
Max cutting thickness | 12mm | 16 mm |
X-axis travel | 2500 mm | 2500 mm |
Y-axis travel | 1300 mm | 1300 mm |
Z-axis travel | 150 mm | 150 mm |
Max working surface load | 1000 KGS | 1000 KGS |
Laser wavelength | 1070um | 1070um |
Transmission mode | Korea imported ball screw | Korea imported ball screw |
Work table drive mode | Japan imported servo motor | Japan imported servo motor |
Focus way | auto focus | auto focus |
positioning accuracy | ≤±0.05 mm | ≤±0.05 mm |
Re-positioning accuracy | ±0.02 mm | ±0.02 mm |
Max cutting speed | 100m/min | 100m/min |
Min line width | ≤0.1mm | ≤0.1mm |
Supported formats | PLT,DXF,BMP,AI etc. | PLT,DXF,BMP,AI etc. |
Power requirements | 380V/50Hz | 380V/50Hz |
Cooling mode | Force-air cooling | Force-air cooling |
control method | Advanced Offline Motion Control | Advanced Offline Motion Control |
Control System | China Asmen Laser professional software | China Asmen Laser professional software |
