jewelry laser welder

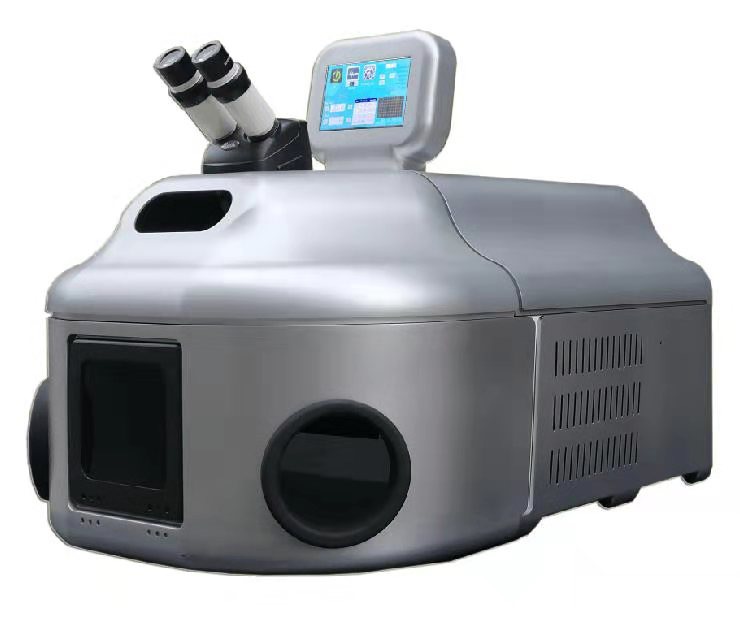

Desktop jewelry laser welder AL-SW200/300W
Mini portable design. Adopt imported ceramic cavity, corrosion resistant, high temperature resistant, high electrical/optical conversion. Energy, pulse width, frequency and focus can be adjusted in a wide range to achieve different welding effect. Parameters can be adjusted by Joystick, simple and efficient. Life of xenon lamp over 8 million times. 24-hour continuous operation, with stable performance.
Application:
It is designed for jewelry ornaments manufacturing, jewelry repairing, rings or bracelets resizing, gold and silver re-tipping, stone setting, eyewear welding or repairing, denture welding, small auto parts welding, etc. Generally, it is especially suitable for tiny target precision welding. It works on gold, platinum, titanium, silver, copper, nickel, aluminum, magnesium, stainless steel, etc.
Technical Parameters:
Model No: AL-SW200/300
Laser source: Nd3+: YAG
Wavelength: 1064nm
Pulse frequency: 1~30Hz adjustable
Pulse width: 1.5~20ms adjustable
Rated Laser Power: 200W / 300W
Focused Beam Diameter: 0.1~3mm
Expanding Ratio: 3X
Microscope Ratio: 10X
Focal Length: 100mm
Power Supply: Single phase AC 220V±10%
Power consumption: 6kw
Running Environment: Temperature 5℃~30℃, humidity < 85%.
Protection Gas: argon
